产品概述
Leopard7000系列是ONV自主研发的全千兆二层网管Bypass工业以太网交换机,支持5个10/100/1000Base-T自适应RJ45端口+2个100/1000Base-X SFP光口插槽。所有端口支持线速转发。该交换机集成了Bypass光切换模块,当交换机出现电源中断,光纤自动切换至旁路直通状态,避免因为交换机故障引起通信中断,保证网络传输的可靠性。
Leopard7000具备L2+网管功能,支持IPV4管理,支持静态路由转发,支持完备的安全防护机制、完善的ACL/QoS策略和丰富的VLAN功能,易于管理维护。支持多种网络冗余协议STP/RSTP/MSTP(<50ms)提升链路备份和网路可靠性,保证重要应用的不间断通讯。根据实际应用需要,通过Web、CLI、SNMP、Telnet等网管方式,进行端口管理,路由地址管理,端口流量控制,VLAN划分,IGMP、安全策略等多种应用业务配置。Leopard7000工业级系列产品,完全遵循工业产品设计与用料,外壳采用铝合金增强散热效能,具备极佳的工业现场环境适应性(包含机械稳定性、气候环境适应性、电磁环境适应性等)、防护等级达到IP40、支持双冗余供电、低功耗无风扇散热技术、MTBF 平均无故障工作时间可达35 年、超长5 年质保。适合智能交通、轨道交通、电力行业、矿业开采、石油、海运、冶金及绿色能源建设等工业场景组建经济高效、稳定、可靠的通信网络。
产品特点
n 千兆接入,光口上行,集成Bypass功能
◇ 全系列支持“千兆以太网口+千兆光口”组合,方便用户灵活组网,满足各种场景组网需求;
◇ 所有端口支持无阻塞线速转发,传输更流畅。
◇ 支持IEEE 802.3x全双工流控和Backpressure半双工流控。
◇ 支持物理型单模单纤光路旁通(Bypass)功能,纯硬件切换,切换时间短、不影响数据传输速率,提升网络系统的稳定性。
n 强大业务处理能力
◇ 支持IEEE 802.1Q VLAN,用户可以按需求灵活划分VLAN,支持Access、Trunk、Hybrid三种类型端口配置。
◇ 支持QoS,支持基于端口、基于802.1P和基于DSCP的三种优先级模式和Equ、SP、WRR、SP+WRR四种队列调度算法。
◇ 支持ACL,通过配置匹配规则、处理操作以及时间权限来实现对数据包的过滤,提供灵活的安全访问控制策略。
◇ 支持IGMP V1/V2/V3组播协议,支持IGMP Snooping,满足多终端高清视频监控和视频会议接入需求。
◇ 支持STP/RSTP/MSTP生产树协议,消除二层环路、实现链路备份。
◇ 支持静态汇聚和动态汇聚,有效增加链路带宽,实现负载均衡、链路备份,提高链路可靠性。
n 完备的安全防护机制
◇ 支持802.1X认证,为局域网计算机提供认证功能,并根据认证结果对受控端口的授权状态进行控制。
◇ 支持端口隔离。
◇ 支持端口广播风暴抑制。
◇ 支持IP+MAC+端口+VLAN四元灵活组合绑定功能。
n 设备稳定可靠
◇ 主机低功耗、无风扇静音设计,铝合金材质金属外壳,散热优良,保证产品稳定运行。
◇ 设备满足国家CCC标准,完全符合CE、FCC、RoHS安规要求,使用安全可靠。
◇ 用户可通过电源指示灯(PWR)、系统运行指示灯(SYS)、端口状态指示灯(Link,L/A)、轻松了解设备工作状态。
n 轻松的运维管理
◇ 支持Web网管、CLI命令行(Console,Telnet)、SNMP(V1/V2/V3)、Telnet等多样化的管理和维护方式。
◇ 支持HTTPS、SSLV3、SSHV1/V2等加密方式,管理更安全。
◇ 支持RMON、系统日志、端口流量统计,便于网络优化和改造。
◇ 支持LLDP,方便网络管理系统查询及判断链路的通信状况。
◇ 支持CPU监控、内存监控、Ping检测、线缆长度检测。
包装清单
包装清单 |
物品名称 |
数量 |
单位 |
7口全千兆Bypass网管工业交换机 |
1 |
台 |
|
RJ45-DB9适配转换线 |
1 |
根 |
|
快速使用指南 |
1 |
份 |
|
保修卡与合格证 |
1 |
份 |
订购信息
设备信息 |
建议电源功率 |
|
Leopard7000 |
L2+网管型5个10/100/1000M RJ45端口+ 2个100/1000M SFP光口插槽,Bypass工业以太网交换机,支持双DC冗余电源输入,支持导轨式安装。 |
12W/24W |
说明:本产品默认不配套SFP光模块和电源,如需选购,请参考配件产品信息。 |
相关产品信息
设备名称 |
设备信息 |
Leopard7000 |
L2+网管型8个10/100/1000M RJ45端口+ 4个100/1000M SFP光口插槽,Bypass工业以太网交换机,支持双DC冗余电源输入,导轨式安装。 |
型号 |
Leopard7000 |
端口特征 |
|
固定端口 |
4个10/100/1000Base-T RJ45端口(Data) 2个100/1000Base-X SFP上联光口插槽 (Data) 1个Console RS232控制口(115200,N,8,1) 2组V+,V- 冗余DC电源接口(5P凤凰端子) |
Bypass光口 |
电源ON:P1——P4互通,P2——P3互通 |
电源OFF:P1——P3直通 |
|
网口特性 |
1-4口10/100/1000Base-T自动侦测, 全/半双工MDI/MDI-X自适应 |
双绞线传输 |
10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) |
光口特性 |
千兆SFP光纤接口,默认不配套光模块,需要另购,(仅支持单模单纤光模块,LC) |
光缆 |
单模 ——工作波长:1310nm,传输距离:0~40KM; 工作波长: 1550nm,传输距离:0~120KM 。 |
交换芯片参数 |
|
网管类型 |
L2+ |
网络协议 |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
转发模式 |
存储转发(全线速) |
背板带宽 |
64Gbps (无阻塞) |
包转发率@64byte |
8.93Mpps |
CPU |
500MHz |
DRAM |
1G |
FLASH |
128M |
MAC地址表 |
8K |
包转发缓存 |
4M |
巨型帧 |
10K |
LED指示灯 |
电源/系统指示灯 :SYS(绿色); 网络指示灯:Link(黄色);光口指示灯:L/A(绿色) |
一键还原开关 |
有(按住开关10秒后松开,即可恢复出厂设置) |
电源特征 |
|
工作电压 |
直流DC12-48V超宽供电电压,工规5P凤凰端子连接,支持防反接保护 |
整机功耗 |
待机功耗:<8W;满载功耗:<12W |
配套电源 |
无,可选购工业电源24V/24W,见配件信息表选购使用 |
物理规格参数 |
|
工作温度/湿度 |
-40~+75°C;5%~90% RH无凝结 |
存储温度/湿度 |
-40~+85°C;5%~95% RH无凝结 |
外观尺寸(L*W*H) |
145*134.5*47mm |
净重/毛重 |
<0.6kg / <0.8kg |
安装方式 |
桌面式、35mm DIN导轨式安装 |
产品认证与质保 |
|
防雷/防护等级 |
端口防雷:6KV 8/20us; 防护等级:IP40 IEC61000-4-2(ESD):±8kV接触放电,±15kV空气放电 IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT):电源线:±4kV;数据线:±2kV IEC61000-4-5(Surge):电源线:CM±4kV/DM±2kV;数据线:±4kV IEC61000-4-6(射频传导):10V(150kHz~80MHz) IEC61000-4-8(工频磁场):100A/m持续;1000A/m ,1s to 3s IEC61000-4-9(脉冲磁场):1000A/m IEC61000-4-10(阻尼振荡):30A/m 1MHz IEC61000-4-12/18(震荡波):CM 2.5kV,DM 1kV IEC61000-4-16(共模传导):30V持续;300V,1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(通用工业标准) |
机械特性 |
IEC60068-2-6(抗振动) IEC60068-2-27(抗冲击) IEC60068-2-32(自由下落) |
安规认证 |
3C; CE mark, commercial;CE/LVD EN62368-1; FCC Part 15 Class B;RoHS; |
质保期 |
交换机5年,终身维护 |
网管业务特性 |
|
端口 |
支持IEEE802.3x流控(全双工) 支持基于端口速率的广播风暴抑制 支持对出入端口的报文流量进行限速,粒度最小为16Kbps,最大为1Gbps 支持端口实时流量管理(Flow Interval) |
三层功能 |
支持L2+网管功能, 支持IPV4静态路由/默认路由,最大条目128个 支持ARP协议,最大条目1024个 |
VLAN |
支持基于端口的VLAN(4K个),IEEE802.1q 支持基于协议的VLAN 支持Access、Trunk、Hybrid三种类型端口配置 |
端口汇聚 |
支持LACP动态聚合 支持静态聚合 支持最大3个聚合组,每个聚合组最大支持8个端口 |
生成树 |
支持STP(IEEE802.1d) 支持RSTP(IEEE802.1w) 支持MSTP(IEEE802.1s) |
组播 |
支持IGMP Snooping v1/v2、最多支持1024个组播组 支持用户快速离开机制 支持组播VLAN |
镜像 |
支持基本端口的双向流量镜像 |
QoS |
支持Diff-Serv QoS 每个端口支持8个输出队列 支持802.1p/DSCP优先级映射 支持队列调度机制(SP、WRR、SP+WRR) 支持优先级标记Mark/Remark 支持基于流的包过滤 支持基于流的重定向 支持基于流的限速 |
ACL |
支持L2~L4包过滤功能,可以匹配报文前80个字节,提供基于源MAC地址、目的MAC地址、源IP地址、目的IP地址、IP协议类型、TCP/UDP端口、 TCP/UDP端口范围、VLAN等定义ACL。 支持基于端口、VLAN下发ACL |
安全特性 |
支持用户分级管理和口令保护 支持基于端口的IEEE802.1X认证 支持AAA&RADIUS认证 支持MAC地址学习数目限制 支持MAC地址黑洞 支持SSH 2.0,为用户登陆提供安全加密通道 支持SSL,保障数据传输安全 支持端口隔离 支持ARP报文限速功能 支持IP源地址保护 支持ARP入侵检测功能 支持防DoS攻击 支持端口广播报文抑制 支持主机数据备份机制 IP+MAC+VLAN+端口的四元绑定功能 |
DHCP |
支持DHCP Serve 支持DHCP Client 支持DHCP Snooping |
管理与维护 |
支持Console/AUX Modem/Telnet/SSH2.0 CLI命令行配置 支持WEB网管(支持HTTPS) 支持FTP、TFTP、Xmodem、SFTP文件上下载管理 支持SNMP V1/V2C/V3 支持一键还原 支持NTP时钟 支持系统工作日志 支持Ping检测 支持线缆状态检查 支持CPU即时利用率状态查看 支持链路层发现协议LLDP 支持光网视的ONV NMS平台化集群式管理(LLDP+SNMP) |
系统要求 |
Web浏览器:Mozilla火狐2.5或更高版本,谷歌浏览器chrome V42或更高版本,微软Internet Explorer10或更高版本; 5类及以上以太网电缆; TCP/ IP,网络适配器和网络操作系统(如Microsoft Windows,Linux或Mac OS X)安装在网络中的每台计算机上5类及以上以太网电缆; |
[attachments] => [attachmentss] => /Uploads/202404/6629aea85f1fa.pdf|Leopard7000 产品规格书.pdf| [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 2 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [1] => Array ( [id] => 1306 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 10口千兆网管工业以太网交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3010FM是ONV自主研发的全千兆L2+网管型工业以太网光纤交换机。具有8个10/100/1000Base-T自适应RJ45端口和2个100/1000Base-X上行SFP光纤端口。每个端口都可以支持线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/662a046a287a7.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10058 [hits] => 5 [createtime] => 1714029518 [updatetime] => 1714029799 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1306.html [xinghao] => ONV-IPS3010FM [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/662a0483c3dd7.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/662a0488854aa.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/662a048cb069f.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/662a0490e270f.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/662a0494bdbad.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3010FM |
Interface Characteristics |
|
Fixed Port |
1*RS232 console port (115200,N,8,1) 8*10/100/1000Base-T RJ45 ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
Fiber Port |
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management |
L2+ |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
20Gbps |
Forwarding Rate@64byte |
14.88Mpps |
MAC |
8K |
Buffer Memory |
4.1Mb |
Jumbo Frame |
10KB |
CPU(Hz) |
500M |
DRAM |
1Gb |
Flash |
128Mb |
LED Indicator |
Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
Reset Switch |
Yes, Press and hold the reset switch for 10s and release it to restore the factory settings |
Power Supply |
|
Working Voltage |
DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Consumption |
Standby<8W, Full load<15W |
Power Supply |
No, optional 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
155*135*44mm |
Net /Gross Weight |
<0.6kg / <0.75kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Features |
|
Interface |
IEEE802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the rate of packet traffic on the incoming and outgoing ports to mini granularity of 16Kbps and max of 1Gbps |
Layer 3 Features |
IPV4 Static routing/ default routing max 128 entries L2+ network management, ARP protocol max 1024 entries |
VLAN |
Port configuration of Access, Trunk, Hybrid VLAN based on the protocol, 4K VLAN based on port, IEEE802.1q |
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group. |
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
Multicast |
Multicast VLAN, Fast log out IGMP Snooping v1/v2, Max 1024 multicast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Flow-based Packet Filtering 8*Output queues of each port, 802.1p/ DSCP priority mapping |
ACL |
Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
Security |
IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum User hierarchical management and password protection SSH 2.0, SSL, Port isolation, IP-MAC-VLAN-Port binding Mac black holes, IP source protection , ARP message speed limit ARP inspection, Anti-DoS attack, AAA & RADIUS, MAC learning limit |
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
Management |
ONV-NMS platform cluster management (LLDP+SNMP) Download & Management on FTP, TFTP, Xmodem, SFTP One-key recovery, Cable Diagnose, LLDP, SNMP V1/V2/V3 NTP, System work log, Ping Test, CPU instant utilization status view Web Management (HTTPS), Console/ AUX Modem/ Telnet/ SSH2.0 CLI |
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 2 [dkzsgy] => 2 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [2] => Array ( [id] => 1305 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 6口千兆网管工业以太网交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3006FM是ONV自主研发的全千兆L2+网管型工业以太网光纤交换机。具有4个10/100/1000Base-T RJ45端口和2个100/1000Base-X上行SFP光纤端口。每个端口都可以支持线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/662a01ce651e4.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10057 [hits] => 7 [createtime] => 1714028697 [updatetime] => 1714029389 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1305.html [xinghao] => ONV-IPS3006FM [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/662a01df01948.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/662a01e32e415.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/662a01e708b32.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/662a01ead7002.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/662a01ef8e1e7.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3006FM |
Interface Characteristics |
|
Fixed Port |
1*RS232 console port (115200,N,8,1) 4*10/100/1000Base-T RJ45 ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
Fiber Port |
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management |
L2+ |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
8K |
Buffer Memory |
4.1Mb |
Jumbo Frame |
10KB |
CPU(Hz) |
500M |
DRAM |
1Gb |
Flash |
128Mb |
LED Indicator |
Power: PWR (Green), System: SYS (Green) Network: Link G1-G4 (Yellow), Fiber port: L/A G5-G6 (Green) |
Reset Switch |
Yes. Press and hold the reset switch for 10 seconds and release it to restore factory settings |
Power Supply |
|
Working Voltage |
DC12-48V, 5 Pin industrial phoenix terminal, support anti-reverse protection. |
Power Consumption |
Standby<6W, Full load<12W |
Power Supply |
No, optional 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
155*135*44mm |
Net /Gross Weight |
<0.6kg / <0.75kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Features |
|
Interface |
IEEE802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the rate of packet traffic on the incoming and outgoing ports to mini granularity of 16Kbps and max of 1Gbps |
Layer 3 Features |
IPV4 Static routing/ default routing max 128 entries L2+ network management, ARP protocol max 1024 entries |
VLAN |
Port configuration of Access, Trunk, Hybrid VLAN based on the protocol, 4K VLAN based on port, IEEE802.1q |
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 3 aggregation groups and 8 ports per group. |
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
Multicast |
Multicast VLAN, Fast log out IGMP Snooping v1/v2, Max 1024 multicast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Flow-based Packet Filtering 8*Output queues of each port, 802.1p/ DSCP priority mapping |
ACL |
Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
Security |
IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum User hierarchical management and password protection SSH 2.0, SSL, Port isolation, IP-MAC-VLAN-Port binding Mac black holes, IP source protection , ARP message speed limit ARP inspection, Anti-DoS attack, AAA & RADIUS, MAC learning limit |
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
Management |
ONV-NMS platform cluster management (LLDP+SNMP) Download & Management on FTP, TFTP, Xmodem, SFTP One-key recovery, Cable Diagnose, LLDP, SNMP V1/V2/V3 NTP, System work log, Ping Test, CPU instant utilization status view Web Management (HTTPS), Console/ AUX Modem/ Telnet/ SSH2.0 CLI |
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 2 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [3] => Array ( [id] => 1304 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 10口千兆e网管工业以太网交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS5108FM是ONV自主研发的一款全千兆易管理工业以太网光纤交换机。具有8个10/100/1000Base-T自适应RJ45端口和2个100/1000Base-X上行SFP光纤端口。每个端口都可以支持线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629feb135bb7.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10056 [hits] => 6 [createtime] => 1714028145 [updatetime] => 1714028366 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1304.html [xinghao] => ONV-IPS5108FM [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629feb5e371f.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629feb988376.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629febd9e982.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629fec1b709d.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629fec5cc260.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS5108FM |
Interface Characteristics |
|
Fixed Port |
8*10/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP ports (Data) 2 groups of V+, V- redundant DC power port (5P phoenix terminal) |
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
SFP Slot Port |
Gigabit optical fiber interface, default no included optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management Type |
Simple web network management, cloud platform management |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full wire-speed) |
Switching Capacity |
20Gbps |
Forwarding Rate@64byte |
14.88Mpps |
MAC |
8K |
Buffer Memory |
2Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power: PWR (Green), Network: Link G1-G8 (Yellow), Fiber port: L/A G9-G10 (Green) |
Power Supply |
|
Power Consumption |
Standby<8W, Full load<15W |
Interface |
5 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 48V/12W or 48V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
155*135*44mm |
Net /Gross Weight |
<0.6kg / <0.75kg |
Installation |
Desktop, 35mm DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Features |
|
Interface |
Port status display, Port traffic statistics Port duplex/negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
Port Aggregation |
Static aggregation |
Loop Protection |
Loop protection function |
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
Security |
Broadcast storm control, Port isolation, Port speed limit |
DHCP |
DHCP Snooping |
Management |
Mobile APP operation and maintenance management NMS platform management (Local platform/Cloud platform) One-key recovery, Cable Diagnose, Web Management (HTTPS) |
System |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Category 5 and above Ethernet cables TCP/IP, network adapter, and network operating systems (Such as Microsoft Windows, Linux or Mac OS X) are installed on each computer in the network with Category 5 and above Ethernet cables |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 2 [dkzsgy] => 2 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [4] => Array ( [id] => 1303 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 6口千兆e网管工业以太网交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS5064FM是ONV自主研发的一款全千兆易网管工业以太网光纤交换机。具有4个10/100/1000Base-T自适应RJ45端口和2个100/1000Base-X上行SFP光纤端口。每个端口都可以支持线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629fd4546615.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10055 [hits] => 6 [createtime] => 1714027739 [updatetime] => 1714027995 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1303.html [xinghao] => ONV-IPS5064FM [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629fd4a388cb.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629fd4eac39b.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629fd52e455e.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629fd568180f.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629fd5a30068.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS5064FM |
Interface Characteristics |
|
Fixed Port |
4*10/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP ports (Data) 2 groups of V+, V- redundant DC power port (3P phoenix terminal) |
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
SFP Slot Port |
Gigabit optical fiber interface, default no included optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management Type |
Simple web network management, cloud platform management |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full wire-speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
2K |
Buffer Memory |
2Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
Power Supply |
|
Total power/ Input Voltage |
5W/12-48VDC |
Power Consumption |
Standby<4W, Full load<6W |
Interface |
3 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 48V/12W or 48V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.25kg / <0.35kg |
Installation |
Desktop, 35mm DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Features |
|
Interface |
Port status display, Port traffic statistics Port duplex/negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
Port Aggregation |
Static aggregation |
Loop Protection |
Loop protection function |
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
Security |
Broadcast storm control, Port isolation, Port speed limit |
DHCP |
DHCP Snooping |
Management |
Mobile APP operation and maintenance management NMS platform management (Local platform/Cloud platform) One-key recovery, Cable Diagnose, Web Management (HTTPS) |
System |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Category 5 and above Ethernet cables TCP/IP, network adapter, and network operating systems (Such as Microsoft Windows, Linux or Mac OS X) are installed on each computer in the network with Category 5 and above Ethernet cables |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 2 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [5] => Array ( [id] => 1302 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 12口千兆工业以太网光纤交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3128F是ONV自主研发的一款全千兆工业以太网交换机。专为满足工业领域和系统而设计,可在恶劣环境下长期稳定运行。拥有10个10/100/1000M自适应RJ45端口和2个1000M SFP光纤端口。每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629fb1a1b6ec.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10054 [hits] => 0 [createtime] => 1714027231 [updatetime] => 1714027390 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1302.html [xinghao] => ONV-IPS3128F [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629fb1fa8276.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629fb24655eb.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629fb2896585.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629fb2cf23b7.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629fb31281d2.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3128F |
Interface Characteristics |
|
Fixed Port |
10*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP fiber ports (Data) 2 sets of V+, V- redundant DC power interface (5P Phoenix terminal) |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
Ethernet Port |
Port 1-10 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
SFP Slot Port |
Gigabit optical fiber interface, default not include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
24Gbps |
Forwarding Rate@64byte |
17.86Mpps |
MAC |
8K |
Buffer Memory |
4Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power: PWR (Green), Network: Link G1-G10 (Yellow) Fiber Port: L/A G11-G12 (Green) |
Power Supply |
|
Power Consumption |
Standby<8W, Full load<15W |
Working Voltage |
DC12-48V, 5 Pin industrial phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
155*135*44mm |
Net /Gross Weight |
<0.6kg / <0.8kg |
Installation |
Desktop, DIN Rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s to 3s |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 2 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [6] => Array ( [id] => 1301 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 10口千兆工业以太网光纤交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3108F是ONV自主研发的一款全千兆工业以太网交换机。专为满足工业领域和系统而设计,可在恶劣环境下长期稳定运行。拥有8个10/100/1000M自适应RJ45端口和2个1000M上联SFP光纤端口。每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629fa274e1da.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10053 [hits] => 1 [createtime] => 1714026964 [updatetime] => 1714027163 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1301.html [xinghao] => ONV-IPS3108F [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629fa2fe0e56.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629fa33e6abb.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629fa38102d9.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629fa3d83c86.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629fa41c3a5e.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3108F |
Interface Characteristics |
|
Fixed Port |
8*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP fiber ports (Data) 2 sets of V+, V- redundant DC power interface (5P Phoenix terminal) |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
Ethernet Port |
Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
SFP Slot Port |
Gigabit optical fiber interface, default not include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full Wire Speed) |
Switching Capacity |
20Gbps |
Forwarding Rate@64byte |
14.88Mpps |
MAC |
8K |
Buffer Memory |
4Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power: PWR (Green), Network: Link G1-G10 (Yellow) Fiber port: L/A G11-G12 (Green) |
Power Supply |
|
Power Consumption |
Standby<8W, Full load<15W |
Working Voltage |
DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
155*135*44mm |
Net /Gross Weight |
<0.6kg / <0.8kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s to 3s |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 2 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [7] => Array ( [id] => 1300 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 10口千兆工业以太网交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3108是ONV自主研发的一款千兆工业以太网交换机。专为满足工业领域和系统而设计,可在恶劣环境下长期稳定运行。具有10个10/100/1000M RJ45端口。每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629f944429bf.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10052 [hits] => 1 [createtime] => 1714026752 [updatetime] => 1714026906 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1300.html [xinghao] => ONV-IPS3108 [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629f948d22c6.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629f94c8f072.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629f950e3fa8.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629f955ee290.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629f95bbf027.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3108 |
Interface Characteristics |
|
Fixed Port |
10*10/100/1000Base-T RJ45 ports (Data) 2 set of V+, V- redundant DC power ports (5P Phoenix terminal) |
Ethernet Port |
Port 1-10 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX , IEEE802.3u 1000Base-T, IEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
20Gbps |
Forwarding Rate @64byte |
14.88Mpps |
MAC |
|
Buffer Memory |
4Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power: PWR (Green), Network: Link G1-G10 (Yellow) |
Power Supply |
|
Working Voltage |
DC12-48V, 5P industrial phoenix terminal, support anti-reverse protection |
Power Consumption |
Standby<6W, Full load<8W |
Power Supply |
No, optional 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40°C~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
155*135*44mm |
Net /Gross Weight |
<0.6kg / <0.8kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s to 3s |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 2 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [8] => Array ( [id] => 1299 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 6口千兆工业以太网光纤交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3064FG是ONV自主研发的一款全千兆工业以太网光纤交换机。专为满足工业领域和系统而设计,可在恶劣环境下长期稳定运行。拥有5个10/100/1000M自适应RJ45端口和1个1000M SFP光纤端口,每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629f7ba20db9.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10051 [hits] => 0 [createtime] => 1714026350 [updatetime] => 1714026539 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1299.html [xinghao] => ONV-IPS3064FG [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629f7c74cc35.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629f7cce8c18.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629f7d238dbf.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629f7d821482.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629f7dd983af.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3064FG |
Interface Characteristics |
|
Fixed Port |
1*DC5521 power socket 5*10/100/1000Base-T RJ45 ports (Data) 1*1000Base-X uplink SFP fiber port(Data) 2 groups V+, V- redundant DC power interface (3P phoenix terminal) |
Ethernet Port |
Port 1-5 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
SFP Slot Port |
Gigabit optical fiber interface, default no include optical modules (optional single-mode / multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
8K |
Buffer Memory |
2Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power:PWR (Green), Network: Link (Green), Fiber port: L/A (Green) |
Power Supply |
|
Power Consumption |
Standby<3W, Full load<8W |
Power Supply |
No, optional 24W/24V industrial power supply |
Working Voltage |
DC12-48V, 3P industrial Phoenix terminal, support anti-reverse protection. |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.2kg / <0.3kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [9] => Array ( [id] => 1298 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 6口千兆工业以太网光纤交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3064F是ONV自主研发的一款全千兆工业以太网光纤交换机。专为满足工业领域和系统而设计,可在恶劣环境下长期稳定运行。拥有4个10/100/1000M RJ45端口和2个1000M SFP光纤端口。每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629f6dfa11ec.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10050 [hits] => 2 [createtime] => 1714026127 [updatetime] => 1714026313 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1298.html [xinghao] => ONV-IPS3064F [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629f6e4178a2.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629f6e7d4300.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629f6ed42a63.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629f6f128874.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629f6f54daaf.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3064F |
Interface Characteristics |
|
Fixed Port |
1*DC5521 power socket 4*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP fiber ports(Data) 2 groups V+, V- redundant DC power interface (3P phoenix terminal) |
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
Fiber Port |
Gigabit SFP optical fiber interface, default no include optical module (optional single-mode / multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full Wire Speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
8K |
Buffer Memory |
2Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power: PWR (Green), Network: Link G1-G6 (Green) |
Power Supply |
|
Power Consumption |
Standby<5W, Full load<8W |
Power Supply |
No, optional 24W/24V industrial power supply |
Working Voltage |
DC12-48V, 3P industrial Phoenix terminal, support anti-reverse protection. |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.2kg / <0.3kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [10] => Array ( [id] => 1297 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 6口千兆工业以太网交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3064是ONV自主研发的一款千兆工业以太网交换机。专为满足工业领域和系统而设计,可在恶劣环境下长期稳定运行。具有6个10/100/1000M RJ45端口。每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629f5a5d29d2.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10049 [hits] => 2 [createtime] => 1714025824 [updatetime] => 1714025987 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1297.html [xinghao] => ONV-IPS3064 [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629f5ac3cd12.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629f5b14125f.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629f5b6a6625.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629f5bb6db75.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629f5bfaa959.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |
ONV-IPS3064 |
Interface Characteristics |
|
Fixed Port |
1*DC5521 power socket 6*10/100/1000Base-T RJ45 ports (Data) 2 set of V+, V- redundant DC power ports (3P Phoenix terminal) |
Ethernet Port |
Port 1-6 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX , IEEE802.3u 1000Base-T, IEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
16Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
8K |
Buffer Memory |
2Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power: PWR (Green), Network: Link G1-G6 (Green) |
Power Supply |
|
Working Voltage |
DC12-48V, 3P industrial phoenix terminal, support anti-reverse protection |
Power Consumption |
Standby<4W, Full load<6W |
Power Supply |
No, optional 24W/24V industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40°C~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.2kg / <0.3kg |
Installation |
Desktop, DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s to 3s |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) [11] => Array ( [id] => 1296 [catid] => 20 [userid] => 4 [username] => admin001 [title] => 3口千兆工业以太网光纤交换机 [title_style] => [keywords] => 交换机_POE交换机_工业POE交换机_bt POE交换机_工业交换机_以太网交换机_汇聚/核心交换机_智能箱_监控箱_运维箱_光纤收发器_电源_ONV光网视 [description] => ONV-IPS3032F是ONV自主研发的一款全千兆工业以太网光纤交换机。具有2个10/100/1000Base-T RJ45端口和1个1000Base-X上行SC单模双纤光模块(可选单模单纤光模块)。每个端口均可支持全线速转发。 [content] =>
[template] => 0 [thumb] => /Uploads/202404/6629d309d1fc3.jpg [thumb_alt] => [posid] => 0 [status] => 1 [recommend] => 0 [readgroup] => [readpoint] => 0 [listorder] => 10048 [hits] => 1 [createtime] => 1714016951 [updatetime] => 1714017118 [price] => 0.00 [url] => /Industrial_Ethernet_Switch/show/1296.html [xinghao] => ONV-IPS3032F [pics] => Array ( [0] => Array ( [filepath] => /Uploads/202404/6629d3118d4dc.jpg [filename] => 01.jpg [filealt] => ) [1] => Array ( [filepath] => /Uploads/202404/6629d3155ad77.jpg [filename] => 02.jpg [filealt] => ) [2] => Array ( [filepath] => /Uploads/202404/6629d319681c6.jpg [filename] => 03.jpg [filealt] => ) [3] => Array ( [filepath] => /Uploads/202404/6629d31e4dc1e.jpg [filename] => 04.jpg [filealt] => ) [4] => Array ( [filepath] => /Uploads/202404/6629d321d8463.jpg [filename] => 05.jpg [filealt] => ) ) [lang] => 2 [cc] => 1/1 [shuomingshu] => [feature] => [canshu] =>
Model |

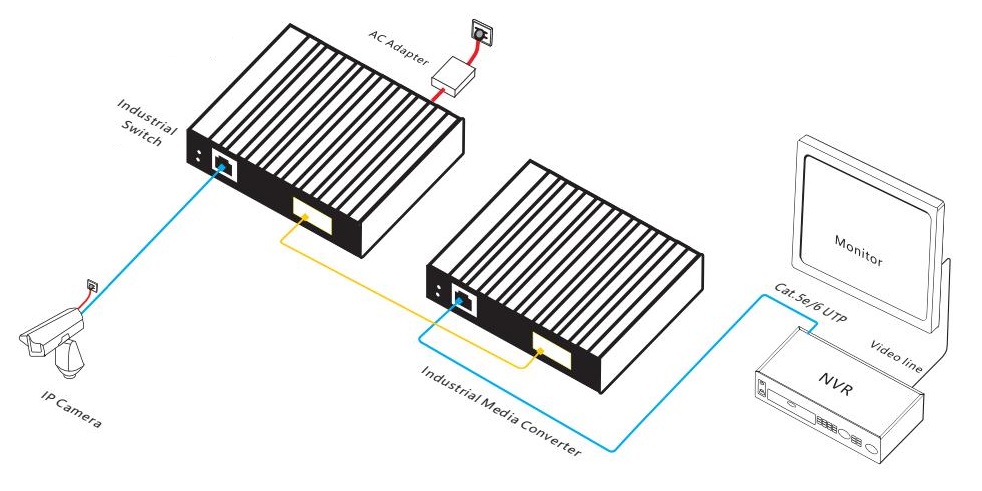

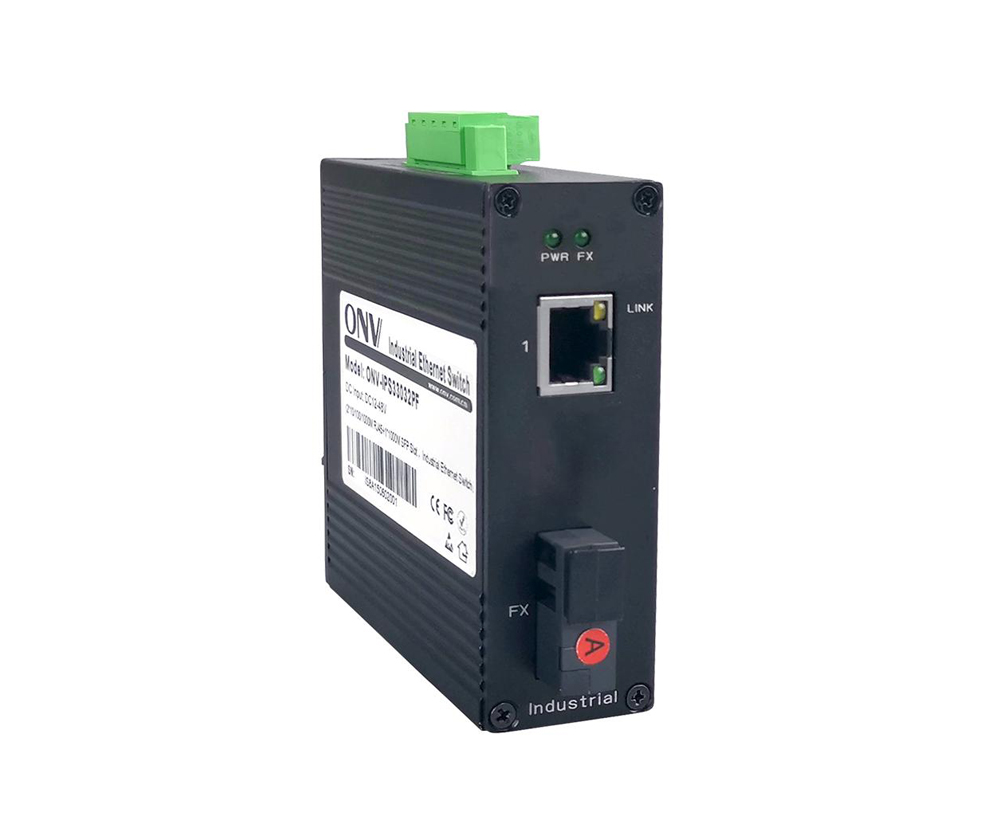

ONV-IPS3032F |
Interface Characteristics |
|
Fixed Port |
1*DC5521 power socket 1*1000Base-X uplink SC port(Data) 2*10/100/1000Base-T RJ45 ports (Data) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal) |
Ethernet Port |
Port 1 to 2 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
Fiber Port |
Gigabit single-mode dual fiber SC optical module (optional single-mode single fiber optical module) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
10Gbps |
Forwarding Rate@64byte |
4.46Mpps |
MAC |
2K |
Buffer Memory |
2M |
Jumbo Frame |
9.2K |
LED Indicator |
Power: PWR (Green), Network: Link (Yellow) |
Power Supply |
|
Power Consumption |
Standby<4W, Full load<6W |
Working Voltage |
DC12-48V, 3P industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 24W/24V industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |

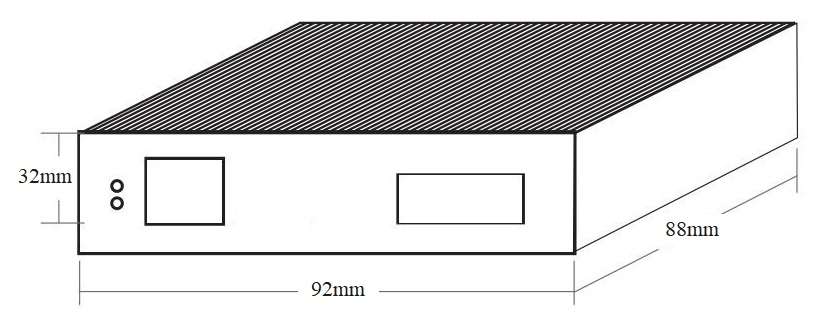

Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.2kg / <0.3kg |
Installation |
Desktop, 35mm DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
[attachments] => [attachmentss] => [cpfl] => 0 [PoE_biaozhun] => 0 [PoE_duankou] => 0 [xiaxingduankou] => 0 [anzhuangfangshi] => 0 [guangkou] => 0 [cpflgy] => 3 [dkzsgy] => 1 [xxdkgy] => 2 [sxdkgy] => 2 [安装方式工业] => 0 [cpflpoe] => 0 [POEzjgl] => 0 [PoE_DK] => 0 [Downlink_portw] => 0 [Uplink_portw] => 0 [cpflsc] => 0 [POEzcglsc] => 0 [PoE_dksc] => 0 [xxdkpoesc] => 0 [sxdkpeosc] => 0 [cpflpeopt] => 0 [cpflhj] => 0 [wkslhj] => 0 [xxdkhj] => 0 [sxdkhj] => 0 [cpflaf] => 0 [dkslaf] => 0 [xxdkaf] => 0 [sxdkaf] => 0 [dysraf] => 0 [cpflgq] => 0 [cpflwx] => 0 [Classificationp] => 0 [Product] => 0 [POE_power] => 0 [PoEs_port] => 0 [Downlink_ports] => 0 [Uplink_ports] => 0 [shangxingduankou] => 0 [wlwzhineng] => 0 [shangxingduan] => 0 [sxdkpoe] => 0 [azfsgy] => 1 ) )
在线客服
